OMR700
Close
Key Specifications
- Data update rate of 1 msec for up to 16 inputs
- Color 5.7 inch TFT display
- Primary and backup data storage system
- Three to 96 analog inputs
- Digital inputs and outputs
- Record into internal memory, SD card or USB Flash
- Ethernet 10/100Base T, RS 485 – Modbus
- USB, microUSB
- Internal data memory 2x 512 MB
- Sound module
- Real Time Clock
- Size 150 x 150 mm
- Cover IP64
- Power source 80 to 250 V AC/DC
- Analog inputs, max. 12 inputs/module
- Digital inputs, max. 12 inputs/module
- Analog outputs, max. 4 outputs/module
- Digital outputs, max. 10 outputs/module
- Data outputs
Data Sheet
OMR 700
A digital data recorder is an instrument that measures, displays and records various input signals applied to it. Touch-screen control and display of multiple channels simultaneously allows immediate comparison of data logger signals being recorded. Various properties including temperature, flow, pressure, mass, energy, voltage, current and resistance can be measured, tracked in time and compared. Data can be saved and sent to a computer for back up or analysis.
The OMR 700 is a data recorder for the recording and display of analog and digital data. It is designed for versatility, intuitive operation, reliable data storage and fast speed. Its modular design lets users start with a few channels and expand as needed.
Features and Benefits
- Touchscreen Interface
- Up to 96 analog input channels
- Very fast update rate (1 ms at up to 16 inputs)
- Easy to program and operate
- Physical seal that will reveal any tampering
- Software password protected
- Digital inputs/outputs
- Data recorder recognizes cards and configures automatically
- Five year warranty
- Wide variety of mix and match input and output cards
- Sealed to IP64
- Countless combinations of inputs, nodes, mathematic operations and outputs
- Store data into internal memory, SD card or USB Flash
- User selectable screen graphics
- Communication port: Ethernet, RS 485
- Bundled PC software for downloading, viewing and graphing data is included

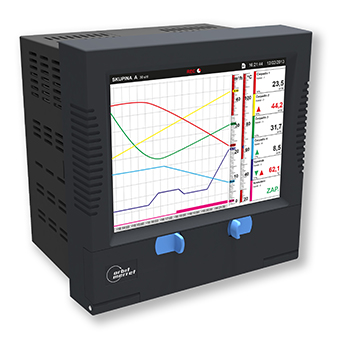

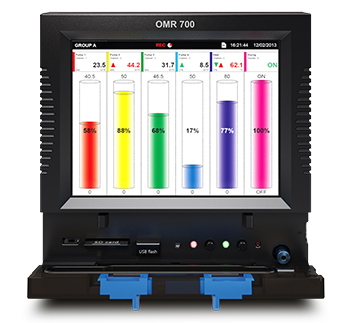

OMR 700 Data Recorder Overview - Cards pre-installed at factory or add more later. SD card incuded. Touchscreen programming with finger or soft stylus (included).
Applications
Water and Wastewater Treatment:
- Multiple tank levels
- Temperatures
- Pressures
- Relay outputs for limit controls
Processing:
- Multiple tank levels
- Temperatures
- Pressures
- Relay outputs for limit controls
Oil and Gas
- Monitoring down-hole pressure
- Pipeline flow rate
- Pipeline pressure
Available Cards
Input:
- IN.1 3x Universal input
- IN.2 4x Process monitor, 0 to 5/20 mA/4 to 20 mA; ±2 V/±5 V/±10 V/±40 V
- IN.3 4x Pt 100/500/1,000, Ni 1,000/10,000,
Cu 50/100 - IN.4 4x Thermocouples, J/K/T/E/B/S/R/N/L
- IN.6 12x Current input ±5 /±20 /4 to 20 mA
- IN.7 12x Voltage input, ±2 /±5 /±10 /±40 V
- IN.8 2x Strain gauge input
- IN.9 3x PM V-I input
- IN.10 2x AC/PWR input
- IN.11 8x digital input
- IN.12 12x pulse input
Output:
- AO.1 2x Analog output, 0 to 2/5/10 V, ±10 V,
0 to 5 mA, 0/4 to 20 mA - AO.2 4x Analog output, 0 to 2/5/10 V, ±10 V,
0 to 5 mA, 0/4 to 20 mA - OUT.1 4x Relay form C (SPDT)
- OUT.2 8x Relay form A (SPST)
- OUT.3 8x open collector, NPN
- OUT.4 16x open collector, NPN
- OUT.5 8x open collector, PNP
- DO.1 PROFIBUS
- DO.2 PROFINET
Included Ports
I/O Communication Port: Ethernet
Data Storage Ports: USB, SD Card
Data Recorder Operation
This data recorder is operated using touch-screen control and displays multiple channels simultaneously. This allows immediate comparison of measurements being recorded. Various properties including temperature, flow, pressure, ph, relative humidity, level, mass, energy, voltage, current and resistance can be measured, tracked in time and compared. Data can be saved and sent to a computer for back up or analysis.
A word about "real time" data recording using a digital data recorder or otherwise. Some manufacturers claim their product records data in "real time" but when you look at their specifications, the rate of measurement can be rather long—for example 200 ms (or five times per second). This may be fast enough to measure changes in some phenomena, but not most. The recorder Bristol Instruments sells measures as fast a 1 ms (or 1,000 times per second). Conversely, it can record up to 132 years of data at a slower rate. The benefits are 1) this product will work for virtually any application and 2) our customers can purchase a product that can be used for an immediate need and future needs that may not even be defined yet.
OMR 700 can measure voltage or current inputs directly as well as any sensor that outputs a voltage, current or resistance. Including
- Temperature from RTD, thermocouple or thermister
- Relative humidity
- Pressure
- Strain
- Load
- Level
- Position
- Motor on/off or other event state
- pH
- And many more applications
Field Housing Sealed to IP 67

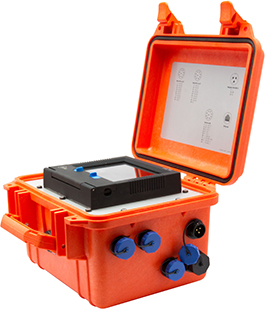

Portable Benchtop Laboratory Housing
Call Bristol Instruments on 877-866-8500 or email us for complete information including specifications or to discuss your application
