TEMPERATURE MONITORS

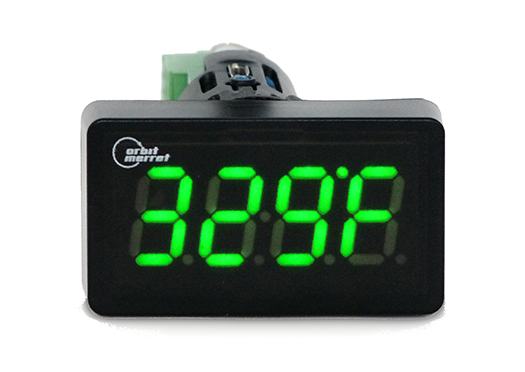

4-digit programmable RTD temperature display with linearization
OMM 335RTD is a 4-digit thermometer for resistive Pt/Ni RTD sensors. It is easy to set up and has very good accuracy. The 22 mm (0.87 in) cross-section of the circular instrument body allows its quick, easy mounting by simply drilling a 1-inch round hole.
4-digit LED display
Click for OMM 335RTD pricing
Input: Pt 100/500/1,000 * Ni 1,000/10,000 * 0 to 3,900 Ω * Programmable: * Digital filters, Linearization
Data Sheet
| Display | Input Ranges | Display Values | Power | Size | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
-999 to 9999
|
Pt Type optional in configuration menu
|
|
24 V DC/AC,
|
Dimensions: |
bezel: 72 x 24 mm |
|
|
|
|
|
|
|
|
|

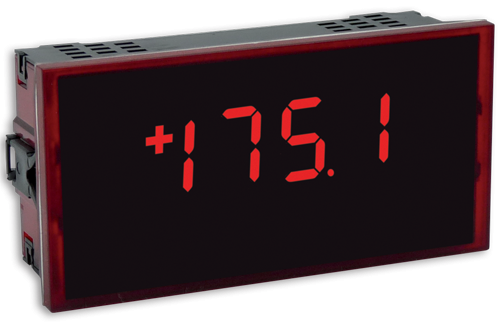

OML 343UNI
3½-digit programmable temperature display
Model OML 343UNI is a simple and economical 3½-digit programmable temperature display. Based on a single-chip microcontroller with A/D convertor, this instrument can be configured for eight different input settings, that are easily accessible in the instrument's menu. The OML 343UNI is designed for high accuracy, stability and ease of control.
- 5 Year Warranty
- 1/8 DIN size
- Relay (option)
- Click for OML 343UNI pricing
- Input: RTD or thermocouple, see below for types
- Digital filters, linearization
Data Sheet
| Display | Ranges | Accuracy | Power | Outputs | Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
±1999
|
Pt 50/100/1 000
|
±0.15 % (of range) |
10 to 30 VDC/24 VAC |
1x relay |
1/8 DIN
|
|
|
|
|
|
|
|
|
|

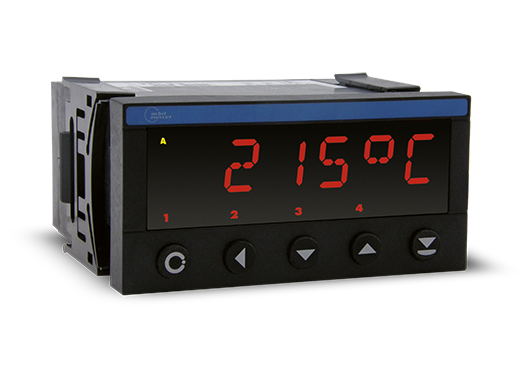

OM 352UNI
3½- or 4-digit programmable temperature display & controller
The OM 352UNI Series is of programmable temperature displays with relay and signal outputs. It is based on a single-chip microcontroller with an A/D convertor which ensures good accuracy, stability and easy programming. The OM 352UNI can be configured for 8 different input signal types. It is available with either 14 mm or 20 mm display, which is 3-color and its color can change when a user programmed value is reached. Excitation option.
- 5 Year Warranty
- 3-Color display version
- Relays, data output analog output (options)
- Click for OM 352UNI pricing
- Multifunction Input: RTD, thermocouple sensors and more, see below for types
Data Sheet
| Display | Ranges | Accuracy | Power | Outputs | Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3½- digit model:
|
Pt 50/100/500/1,000
|
±0.2 % (of range) |
10 to 30 V AC/DC
|
2x relays
|
1/8 DIN
|
|
|
|
|
|
|
|
|
|

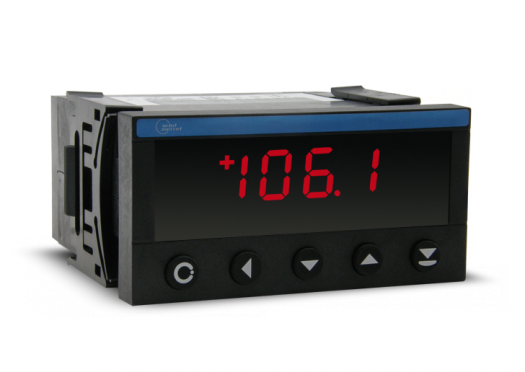

OM 402UNI
4- or 6-digit programmable display / universal panel meter
Model OM 402UNI Series of universal programmable panel instruments are available
in 4- and 6-digit models. Based on a single chip microcontroller with a fast 24-bit A/D convertor, it can be configured for different input signal types, easily set in the instrument's menu.
- 5 Year Warranty
- 3-Color display version
- Relays, data output analog output (options)
- 1/8 DIN size
- Click for OM 402UNI pricing
- Multifunction input: DC, Process Monitor, RTD, T/C, DU, Ni, CU and resistance
- DC Voltmeter and ammeter, ohmmeter, T/C & RTD thermometer
- Display unit for linear potentiometers
- Excitation option
Data Sheet
| Display | Ranges | Accuracy | Power | Outputs | Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4- digit model:
|
Pt 50/100/500/1 000
|
±0.1 % (of range) |
10 to 30 V AC/DC
|
5 to 24 VDC
|
1/8 DIN
|
|
|
|
|
|
|
|
|
|
