MAGNETIC ANGLE SENSORS

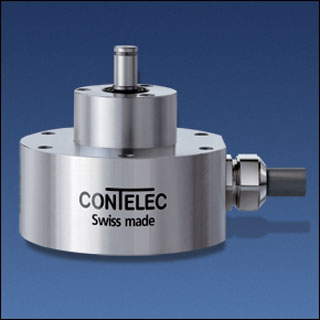

RSX7900 Series
This series of magnetic angle sensors features non-contacting magnetic technology in a solid anodized aluminum housing. They are highly accurate with repeatability to 0.2°.
- Very robust for extreme environments
- Single, semi- and fully-redundant versions
- Enhanced corrosion protection
- Sealed against incursion of dust
- Sealed against pressurized steam cleaning jet spray
- High shaft load to 300 N
Data Sheet
| Range | Linearity | Life | Sealing | Output | Temperature | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
60° |
±2 % < 90° FS
|
100 million movements |
IP 69K |
4 to 20 mA |
-80° to +85°C |
|
|
|
|
|
|
|
|
|
|
120° |
±2 % < 90° FS
|
100 million movements |
IP 69K |
4 to 20 mA |
-80° to +85°C |
|
|
|
|
|
|
|
|
|
|
180° |
±2 % < 90° FS
|
100 million movements |
IP 69K |
4 to 20 mA |
-80° to +85°C |
|
|
|
|
|
|
|
|
|
|
240° |
±2 % < 90° FS
|
100 million movements |
IP 69K |
4 to 20 mA |
-80° to +85°C |
|
|
|
|
|
|
|
|
|
|
300° |
±2 % < 90° FS
|
100 million movements |
IP 69K |
4 to 20 mA |
-80° to +85°C |
|
|
|
|
|
|
|
|
|
Call Bristol Instruments on 877-866-8500 or email us for complete information including specifications or to discuss your application

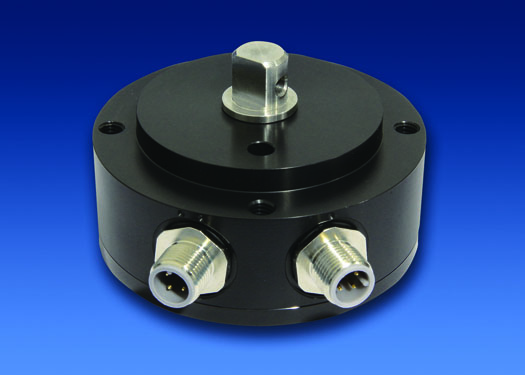

Vert-X 8800 Series
This series of magnetic angle sensors features non-contacting magnetic technology in a solid aluminum housing. They have very high accuracy with repeatability to 0.1° and 14-bit resolution.
- Very robust for extreme environments
- Single, semi- and fully-redundant versions
- Sealed against incursion of dust
- Sealed against pressurized steam cleaning jet spray
- Accepts high shaft loads: axial to 300 N, radial to 400 N
- Programmable index, sense of rotation and max. angle
Data Sheet - 5v supply model
Data Sheet - 24v supply model
| Range | Linearity | Life | Sealing | Output | Temperature | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5v supply models: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
360° |
≤ ±0.1 % |
100 million movements |
IP 69K |
10 to 90% supply voltage |
-80° to +85°C |
|
|
|
|
|
|
|
|
|
|
24v supply models: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
360° |
≤ ±0.1 % |
360 million movements |
IP 69K |
0.1 to 10 V |
-80° to +85°C |
|
|
|
|
|
|
|
|
|
|
360° |
≤ ±0.1 % |
360 million movements |
IP 69K |
0.5 to 4.5 V |
-80° to +85°C |
|
|
|
|
|
|
|
|
|
|
360° |
≤ ±0.1 % |
360 million movements |
IP 69K |
4 to 20 mA |
-80° to +85°C |
|
|
|
|
|
|
|
|
|
|
360° |
≤ ±0.1 % |
360 million movements |
IP 69K |
CANopen/CiA Cert’d. (single) |
-80° to +85°C |
|
|
|
|
|
|
|
|
|
|
360° |
≤ ±0.1 % |
360 million movements |
IP 69K |
CANopen/CiA Cert’d. (single) |
-80° to +85°C |
|
|
|
|
|
|
|
|
|
Call Bristol Instruments on 877-866-8500 or email us for complete information including specifications or to discuss your application
